Description

Minex MJC series of single toggle jaw crushers are mainly used for heavy-duty continuous applications as primary crushers in aggregates production, mining operations and recycling applications. This series includes models of various sizes that are designed to deliver maximum productivity at the lowest operating costs.

This hydraulic jaw crusher is ideal for quarries and mines, as well as C&D recycling, and integrates well with existing systems or works independently. The crushing performance of this series has proven their reliability and productivity in various applications.

With the greatest power ratings in each size class, and a sturdy bolted and non-welded frame structure, this series jaw crushers are advantageous for stationary, underground, and mobile crushing applications. These also have excellent material intake capacity because the feed opening has the right width to depth ratio. Developed to crush the hardest ores and rocks, these crushers also perform outstandingly with less demanding materials.

Salient Features

Easy Installation And Operation

For static and semi-mobile installations, this jaw crushers can be upgraded that enable monitoring and adjusting the settings of a feeder, crusher, and conveyor making it easier and yet safer to operate.

Simple Adjustment

The Hydraulic wedge arrangement enables hassle-free hydraulic closed side adjustment.

User-friendly Maintenance

Options of mechanical wedge locking system for jaw plates, bolts removal from front end frame, jaw seating area on the front-end frame and swing jaw holder protected by replaceable backing plates enables simpler maintenance.

Low Operating Costs

Operating costs are reduced by a steeper nip angle that reduces wear and speeds up material flow down in the cavity.

High Production In All Kinds Of Operations

The presence of a larger feed opening ensures increased material intake so that the rocks enter the jaw crusher’s cavity without restrictions.

Protective Seals

The bearings are protected by grease-purged labyrinth dust seals that ensures longer life.

Product Highlights

Max Feed Size 650 mm / 26 inch
Setting Range 75 mm – 255 mm
Capacity Range 150 TPH – 500 TPH
Motor Power 110 KW / 150 hp

    Get a Quote

    Receive a personalized estimate tailored to your needs.

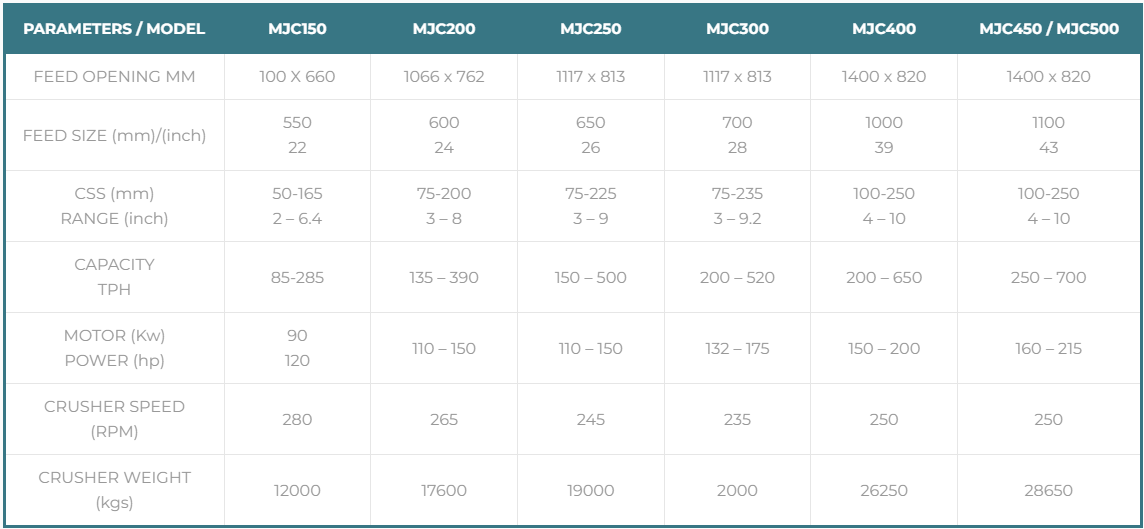

    Technical Specifications

    PARAMETERS / MODEL MJC150 MJC200 MJC250 MJC300 MJC400 MJC450 / MJC500
    FEED OPENING MM 100 X 660 1066 x 762 1117 x 813 1117 x 813 1400 x 820 1400 x 820
    FEED SIZE (mm)/(inch) 550
    22    		 600
    24    		 650
    26    		 700
    28    		 1000
    39    		 1100
    43
    CSS (mm)
    RANGE (inch)    		 50-165
    2 – 6.4    		 75-200
    3 – 8    		 75-225
    3 – 9    		 75-235
    3 – 9.2    		 100-250
    4 – 10    		 100-250
    4 – 10
    CAPACITY
    TPH    		 85-285 135 – 390 150 – 500 200 – 520 200 – 650 250 – 700
    MOTOR (Kw)
    POWER (hp)    		 90
    120    		 110 – 150 110 – 150 132 – 175 150 – 200 160 – 215
    CRUSHER SPEED
    (RPM)    		 280 265 245 235 250 250
    CRUSHER WEIGHT
    (kgs)    		 12000 17600 19000 2000 26250 28650
